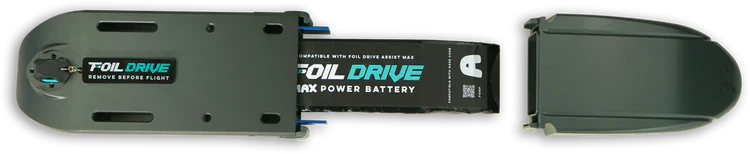

Foil Drive Assist MAX V2 Base



The Assist MAX is the all-rounder Foil Drive system, engineered for the perfect balance between thrust, runtime, and versatility across all foiling disciplines.

Providing an optimized blend of power, endurance, and weight, The Assist MAX unlocks longer surf sessions, reliable flatwater takeoffs, and easy upwind and downwind riding, and unlimited progression regardless of the conditions.

The MAX is best suited for riders under 100 kg using small to midlength boards and their preferred foil setups, offering a single system that performs across surf, wing, downwind, wake, flatwater, and light eFoiling.

The Foil Drive Assist MAX is perfectly suited to those looking for extra thrust for heavier riders or smaller boards and foils, longer ride times and ultimate flexibility of how you choose to foil. Surf, Wing, Downwind, Wake and Flatwater, the Assist MAX does it all!

Simply choose your desired battery size between the:

This is a Base Kit of a Assist MAX only, with no motor or battery included ( unless options selected )

BASE KIT ONLY!!!
DOES NOT INCLUDE

- Choice of Battery with Lipo Bag

- Choice of Gen2 Motor

- Choice of 2 or 3 Blade Propeller/Hub and Stubbie Cooler

- Choice of v2 Cable length (20cm most popular)

UNIVERSAL MAST ADAPTOR NOW INCLUDED!


INCLUDED IN BASE KIT IS:

Foil Drive Assist MAX Electronics Box
Motor Plug Protector with Keychain
Foil Drive Nose Cone A
Foil Drive Nose Cone B
Foil Drive Universal Motor Pod - Rear
Foil Drive Universal Motor Pod - Short Nose
Foil Drive Universal Motor Pod - Long Nose
Foil Drive v3 Wireless Throttle Controller
Foil Drive Controller Wrist Strap
Foil Drive Mast Cable Guide 23cm
Foil Drive Controller Wireless Charge Pad
Micro USB Cable
40v Standard Foil Drive Charger 4amp
4x Mast Track Foam Inserts
2x Nose Cone Rocker Pad
2x Battery Grease
4x M8 Assist MAX Mast Plate Bolts 80mm
4x M6 Assist MAX Mast Plate Bolts 80mm
Foil Drive 2.5mm Driver
Torx T40 Tee Handle Driver
Torx T30 Tee Handle Driver
Foil Drive Cleaning Cloth
Foil Drive Gen2 Carry Case

Foil Drive Mounting Bolt Bag
- 4x M8 Locking Tee Nuts
- 4x M6 Locking Tee Nuts
- 4x M3 x 20mm Bolts for Locking Tee Nuts
- 2x M3 x 16mm Latch Locking Bolts

Foil Drive Motor and Pod Bolts Bag

- 1x V2 Motor Puck
- 4x Motor Pod Bolts (M3 x 12mm)
- 3x Puck Bolts (M3 x 12mm)
- 3x Motor Plug Bolts (M4 x 10mm)

Spare Parts Bag
- 2x O-Ring Seals - Foil Drive Assist MAX
- 2x v2 Latch Assembly - Foil Drive Assist MAX
- 3x Motor Plug Bolts (M3 x 12mm)
- 4x Motor Pod Bolts/Puck Bolts (M3 x 12mm)
- 2x Latch Locking Bolts (M3 x 16mm)
- 2x Propeller Bolts (M3 x 30mm)
- 2x Latch Pivot Bolts (M3 x 45mm)





Total Install Weight: 4.8-5.8kg (10.5-12.7lbs)

SAFETY PRECAUTIONS

For safety with initial purchase we highly recommend the propellor guard - https://hydrofoilstore.com/products/foil-drive-propeller-guard
